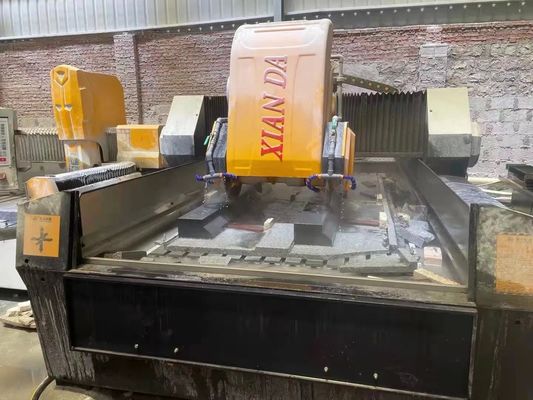

The Bridge Type Linear Cutting and Milling Machine BLMM-1700 features a 3-axis CNC system capable of rough cutting, fine cutting, and finish milling operations. Its bridge-type structure with guide pillar blade lifting and copper bush ensures precision and durability.

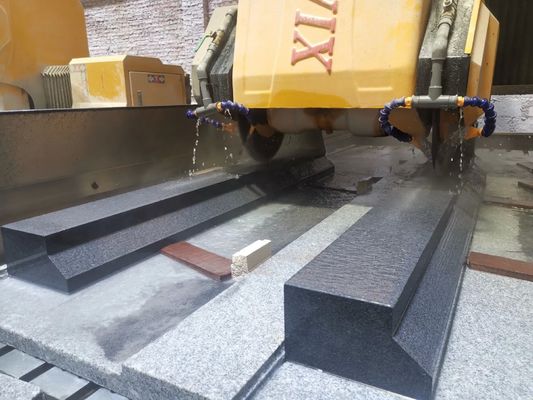

This machine combines the power of profiling machines with the accuracy of linear guides and ball screw rods, delivering high efficiency, precision, and stability. It is the ideal equipment for processing linear, square baluster, and special shapes of kerbstone.
| Parameter | Unit | BLMM-1800MAX-A | BLMM-1800MAX-B |
|---|---|---|---|
| Blade diameter | mm | φ400-700 | φ400-700 |
| Spindle qty | mm | 1 Spindle (2Blades) | 1 Spindle (2Blades) |
| Max lifting travel of cutting frame | mm | 600 | 600 |
| Trolley size | mm | 1800*3500 | 1800*3500 |
| Max processing length | mm | 3500 | 3500 |
| Main motor | kw | 18.5/22 | 18.5/22 |
| Gross power | kw | 24/27.5 | 24/27.5 |
| Outline dimension | mm | 4350*6500*3600 | 4100*6200*3600 |
| X axis transmission structure | / | Walking wheel | Linear guide |
| Y axis transmission structure | / | Single Y axis drive | Dual Y axis drive |
| Water consumption | m³/h | 4 | 4 |
