ホーム /製品/石造りのプロフィールの打抜き機/CNC Stone Cutting Machine with Precision Cutting Head Heavy-Duty Structure and High Speed Cutting for Large-Scale Stone Processing

CNC Stone Cutting Machine with Precision Cutting Head Heavy-Duty Structure and High Speed Cutting for Large-Scale Stone Processing

1
MOQ
To Be Negotiable
価格
CNC Stone Cutting Machine with Precision Cutting Head Heavy-Duty Structure and High Speed Cutting for Large-Scale Stone Processing
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
モデル: BLMM-1800MAX-A/B
刃の直径の範囲: 400-700mm
切断面: 平面/円弧
状態: 新しい
保証: 1年
最大切断長: 3000mm
電圧: 220V/380V/カスタマイズ
トランスポートパッケージ: 20フィートの容器の負荷
ハイライト:

CNC Stone Cutting Machine

,

Heavy Duty CNC Stone Cutting Machine

,

High Speed CNC Stone Cutting Machine
基本情報
起源の場所: 柔術、福建、中国
ブランド名: Xianda Machinery
証明: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
モデル番号: BLMM-1800MAX-A/B
お支払配送条件
パッケージの詳細: ワイヤーロープラッシング、海/陸/鉄道/航空輸送に適しています。
受渡し時間: 15日
支払条件: L/C、D/A、D/P、T/T、Western Union、MoneyGram
供給の能力: 1000セット/年
製品の説明

Dual Beam Bridge Type Linear Cutting and Milling Machine

Product Overview

Introducing the BLMM-1800MAX-A/B, a state-of-the-art dual beam bridge type linear cutting and milling machine designed for precision stone processing. This advanced CNC system features a robust bridge double beam heavy structure that combines the accuracy of linear guide rails with the power of profiling machines, making it ideal for large-scale special-shaped stone processing applications.
Product Specifications
Attribute Value
Keyword Stone Cutting Machine, Heavy-Duty Bridge Double Beam Structure
Cutting Ability High Speed
Voltage 380V
Control system CNC
Usage Roughcutting, Fine Cutting, Fine Miling and Other Functions
Application Processing of Large-sized Special-shaped Stone Materials
Warranty One Year
After-sales service provided Online support, Video technical support, Field maintenance and repair service, Field installation

Technical Specifications

Parameter Unit BLMM-1800 BLMM-1800MAX-A BLMM-1800MAX-B BLMM-1800MAX-2D-A BLMM-1800MAX-2D-B
Blade diameter mm 350-600 400-700 400-700 400-700 400-700
Max lifting travel of cutting frame mm 450 600 600 600 600
Worktable Size mm 1800*3500 1800*3500 1800*3500 1800*3500*2 1800*3500*2
Max processing length mm 3500 3500 3500 3500 3500
Main motor kw 15/18.5(Optional) 18.5/22(Optional) 18.5/22(Optional) 18.5*2/22*2(Optional) 18.5*2/22*2(Optional)
Gross motor kw 21/24.5(Optional) 24/27.5(Optional) 24/27.5(Optional) 46/53 46.5/53.5
Outline dimension mm 5300*3950*2550 6500*4350*3600 6200*4100*3600 6500*6450*3600 6200*6200*3600
Water Consumption m³/h 6 6 6 12 12

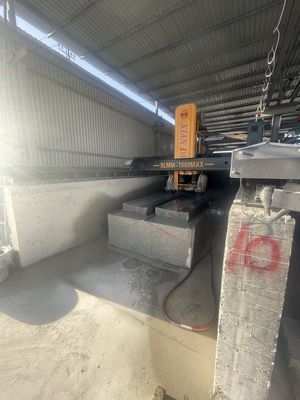

CNC Stone Cutting Machine with Precision Cutting Head Heavy-Duty Structure and High Speed Cutting for Large-Scale Stone Processing 0

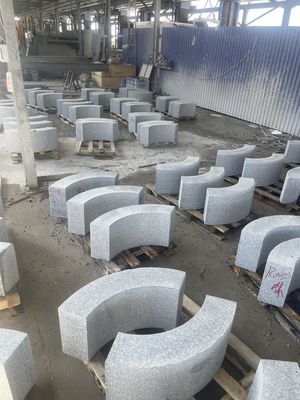

CNC Stone Cutting Machine with Precision Cutting Head Heavy-Duty Structure and High Speed Cutting for Large-Scale Stone Processing 1

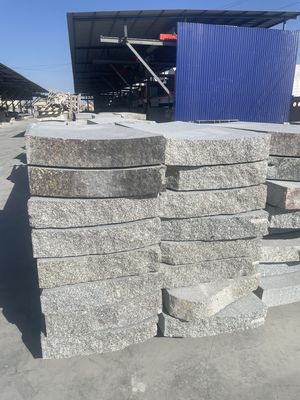

CNC Stone Cutting Machine with Precision Cutting Head Heavy-Duty Structure and High Speed Cutting for Large-Scale Stone Processing 2

CNC Stone Cutting Machine with Precision Cutting Head Heavy-Duty Structure and High Speed Cutting for Large-Scale Stone Processing 3

CNC Stone Cutting Machine with Precision Cutting Head Heavy-Duty Structure and High Speed Cutting for Large-Scale Stone Processing 4

CNC Stone Cutting Machine with Precision Cutting Head Heavy-Duty Structure and High Speed Cutting for Large-Scale Stone Processing 5

Equipment Features

Advanced CNC Control System

  • Three-Axis CNC System Control: Precision control of X, Y, and Z axes for complex cutting operations
  • Intelligent Programming: User-friendly interface with multiple cutting functions
  • Automated Operation: Reduces manual intervention and increases productivity
  • Real-Time Monitoring: Continuous system status feedback and error detection
  • Program Storage: Multiple program storage for different stone processing requirements

Robust Bridge Double Beam Heavy Structure

  • Dual Beam Design: Enhanced stability and rigidity for heavy-duty operations
  • Bridge Type Configuration: Optimal weight distribution and vibration dampening
  • Thermal Stability: Minimal thermal deformation during extended operations
  • Long Service Life: Durable construction ensures years of reliable performance

Precision Cutting Head Lifting Structure

  • Four Guide Column + Sleeve Copper Design: Superior stability and precision
  • Smooth Lifting Motion: Minimized vibration during vertical movement
  • High Precision Positioning: ±0.1mm positioning accuracy
  • Extended Stroke Range: Maximum vertical travel for deep cutting applications
  • Wear-Resistant Components: Copper sleeves ensure long-term precision


Frequently Asked Questions

Q: What makes this machine different from standard bridge saws?

A: The BLMM-1800MAX combines cutting and milling functions in one machine, features a dual-beam structure for enhanced stability, and offers three-axis CNC control for complex shape processing that traditional bridge saws cannot achieve.

Q: What training is required for operators?

A: We provide comprehensive training including CNC programming, machine operation, maintenance procedures, and safety protocols. Most operators become proficient within 1-2 weeks.

Q: Can this machine process all types of stone?

A: Yes, the BLMM-1800MAX is designed to handle granite, marble, quartz, microcrystalline stone, limestone, sandstone, and artificial stone materials.

Contact Information

Ready to transform your stone processing operations?
