Xianda machinery Italian System Automatic Multifunctiona Sawjet Waterjet 5 Axis CNC Granite Marble Bridge Saw and Water Jet Stone Cutting Machine in Europe

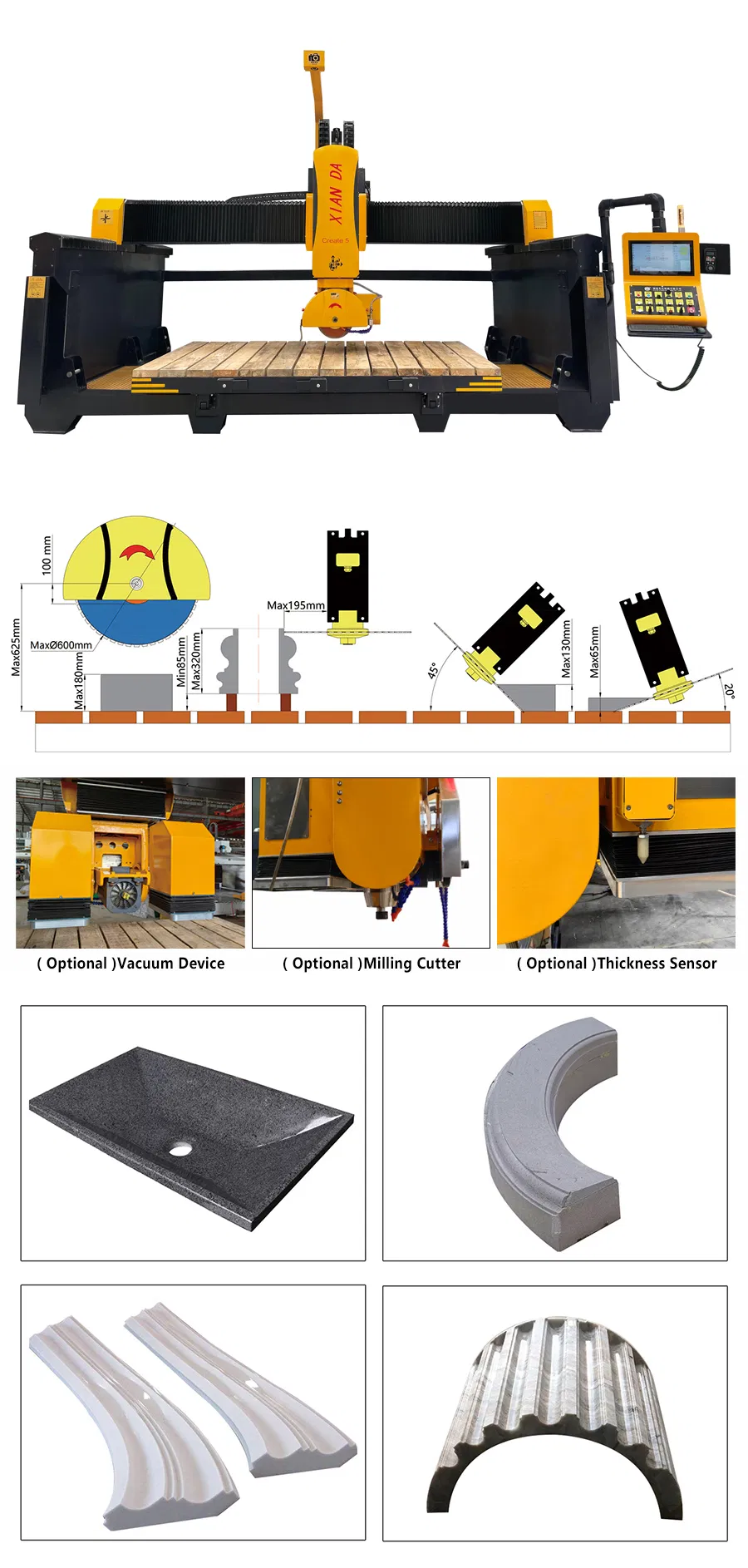

Detailed Photos
Product Description

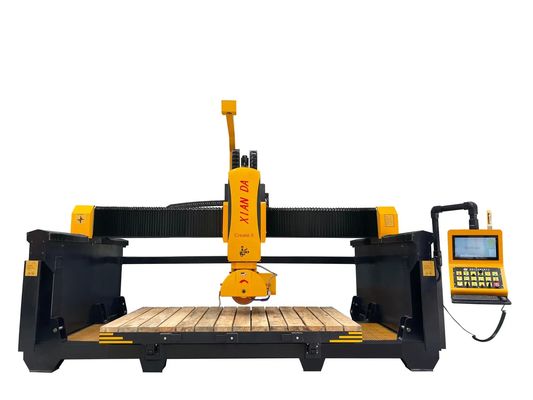

Our Five-Axis Bridge Cutting Intelligent Cutting Machine is a cutting-edge device that combines advanced technology with outstanding performance. Specifically designed for high-precision cutting of materials like stone and ceramics, it integrates an Italian CNC Esa system for five-axis linkage control, enabling it to meet the most intricate cutting demands and offer users an efficient, precise, and convenient cutting solution.
Key Features
- Advanced CNC System: Equipped with the Italian CNC Esa system, the five-axis linkage control precisely manages the cutting tool's trajectory. It can handle complex curved surfaces and polyhedral machining. With just one setup, multiple cutting tasks can be completed, significantly enhancing both processing efficiency and accuracy.
- User-friendly Interface: Featuring a 19-inch color touch-screen, the operation interface is intuitive and easy to use. Users can effortlessly set parameters, program, and conduct cutting operations. Even those with no prior experience can quickly master the machine.
- Stable Gantry Structure: The Y-axis utilizes a gantry moving system, ensuring the flatness and stability of the bridge. This guarantees the motion accuracy of the cutting tool during operation, thus enabling the creation of perfect right angles and straight lines and improving the cutting quality.
- High-precision Transmission System: The moving components adopt an advanced linear ball guide transmission, driven by servo motors through high-precision helical gears and racks, ensuring absolute motion precision. It enables fast and smooth cutting movements, reducing tool wear and enhancing both cutting efficiency and quality.
- Flexible Cutting Modes: Supports manual quick cutting, facilitating simple cutting tasks for users. Additionally, the machine can import DXF (AutoCAD) files, automatically recognize, and generate cutting paths, achieving precise cutting of complex graphics to meet diverse user processing needs.
- Convenient Loading and Unloading Design: The working platform can tilt up to 85 degrees, making the loading and unloading of slabs extremely convenient. This reduces the labor intensity of workers and improves work efficiency. Moreover, the platform is equipped with a slab positioning device to ensure the accuracy of slab installation and further enhance cutting precision.
- Intelligent Nesting and Defect Detection: With a slab photo function, it can be used for nesting and defect detection. By photographing the slabs, the system can automatically identify the shape and defects of the slabs, perform intelligent nesting, optimize the cutting path, and avoid cutting on defective areas, thereby improving the utilization rate of the slabs. It also supports both manual and automatic nesting, allowing users to choose according to their actual requirements.
- Precise Tool Tracking Function: The RTCP (Rotational Tool Center Point) function enables real-time tracking of the tool's position and orientation, ensuring that the tool remains perpendicular to the workpiece surface during cutting, thus achieving high-precision machining. Whether it's straight-line or curved cutting, it guarantees consistent cutting quality.
Product Parameters
|
Parameter
|
Unit
|
Promote 600
|
|
Blade Diameter
|
mm |
φ350-φ600 |
| Worktable Size |
mm |
3400*2000 |
|
Max Processing Size
|
mm |
3400*2000*180
|
|
Table Tilting Degree
|
°
|
0°-85° |
| Head Rotatimg Degree |
°
|
0°-360° |
| Head Tilting Degree |
° |
0°-90° |
| Air Speed |
m/min |
15 |
| Repeated Accuracy of Positioning |
mm |
<0.1mm/1000 |
|
Main Motor
|
kw |
22
|
| Gross Power |
kw |
30 |
|
Water Consumption
|
m³/h |
3
|
|
Outline Dimension
|
mm |
5800*3650*3900 |
| Gross Weight |
kg |
≈6000 |
More Product
| Middle Block Cutting Machine |

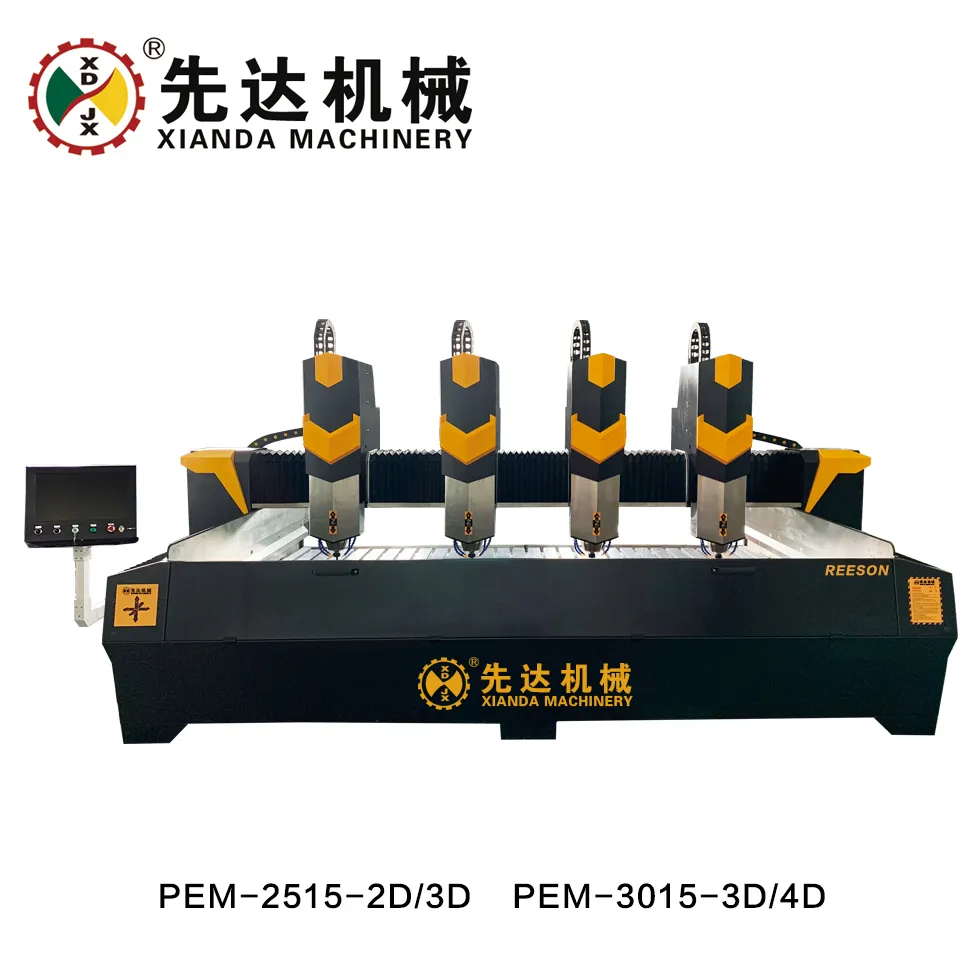

Planar Stone Carving Machine
|
Infrared Bridge Cutting Machine
|

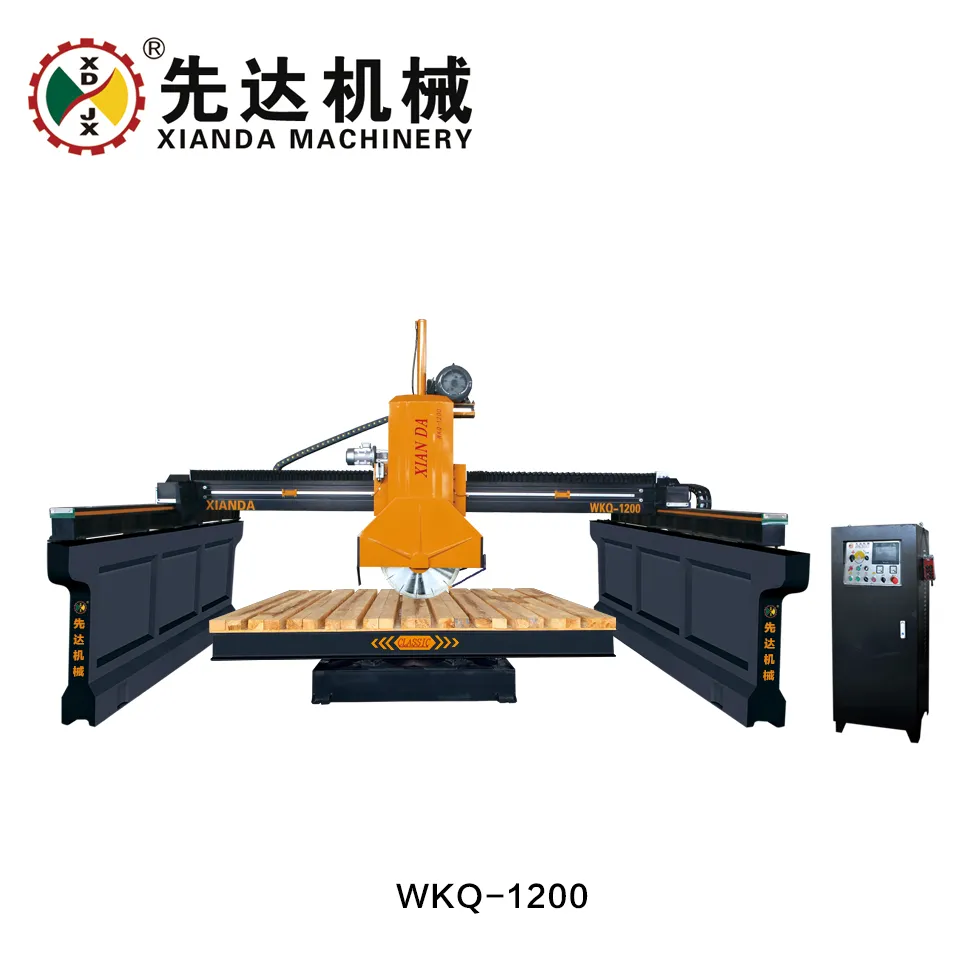

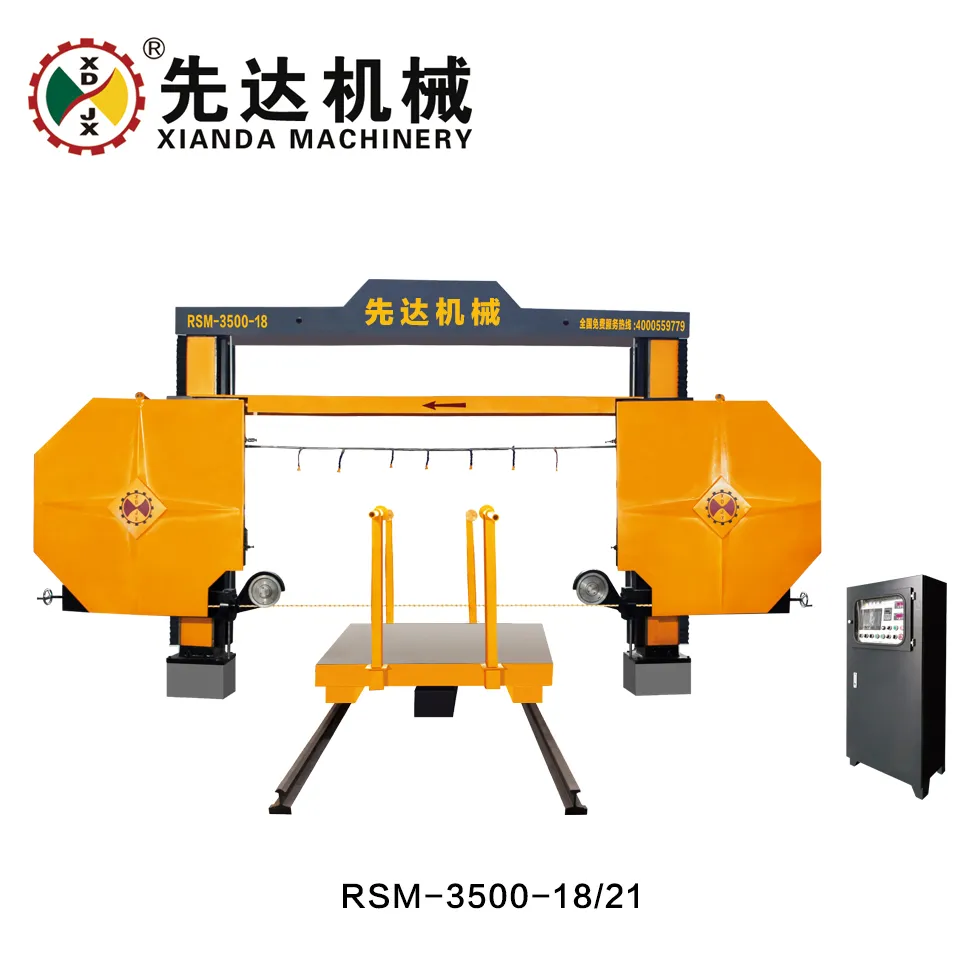

| Block Cutting Machine |
Block Dividing Machine |

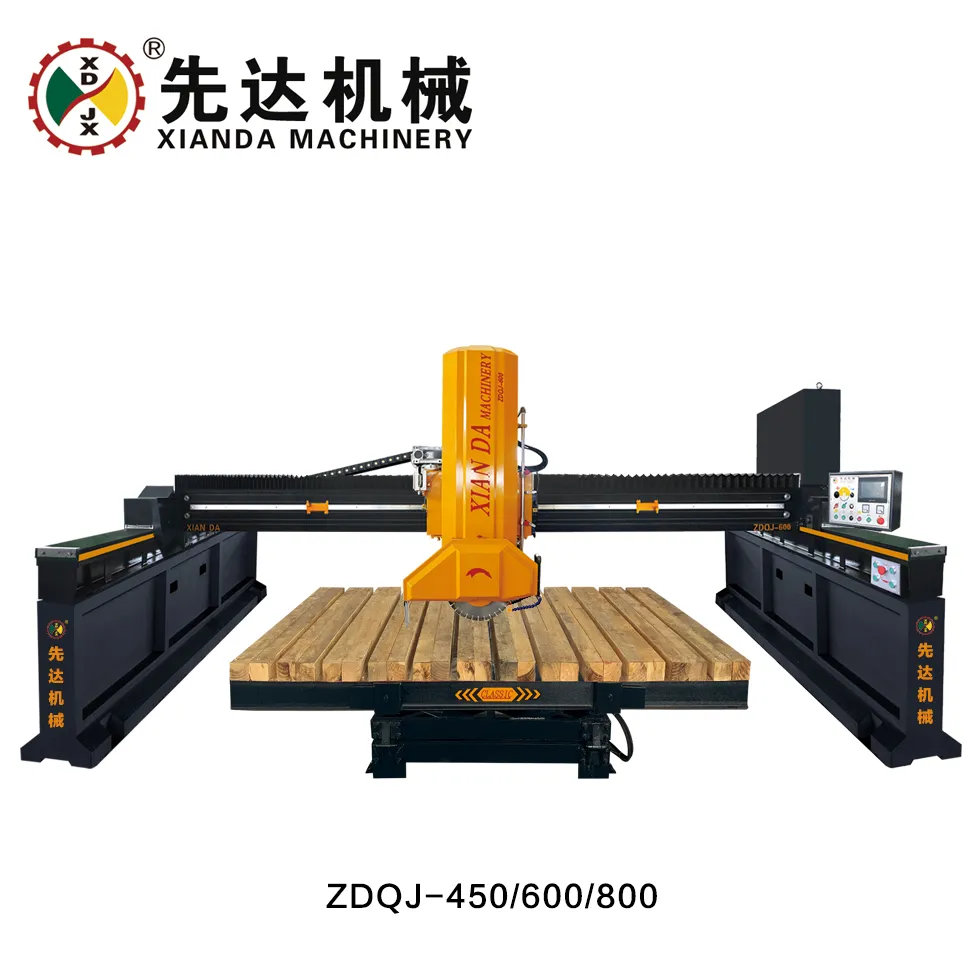

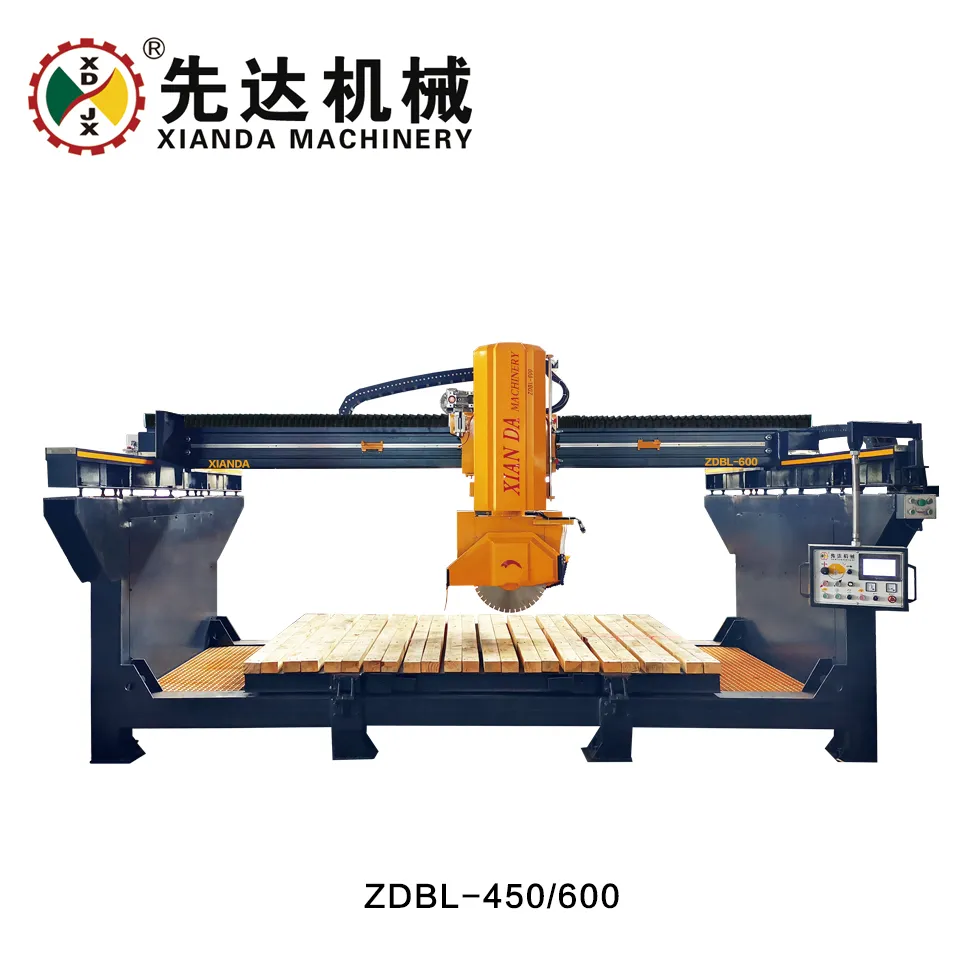

Integrated Bridge Cutting Machine
|
Company Profile

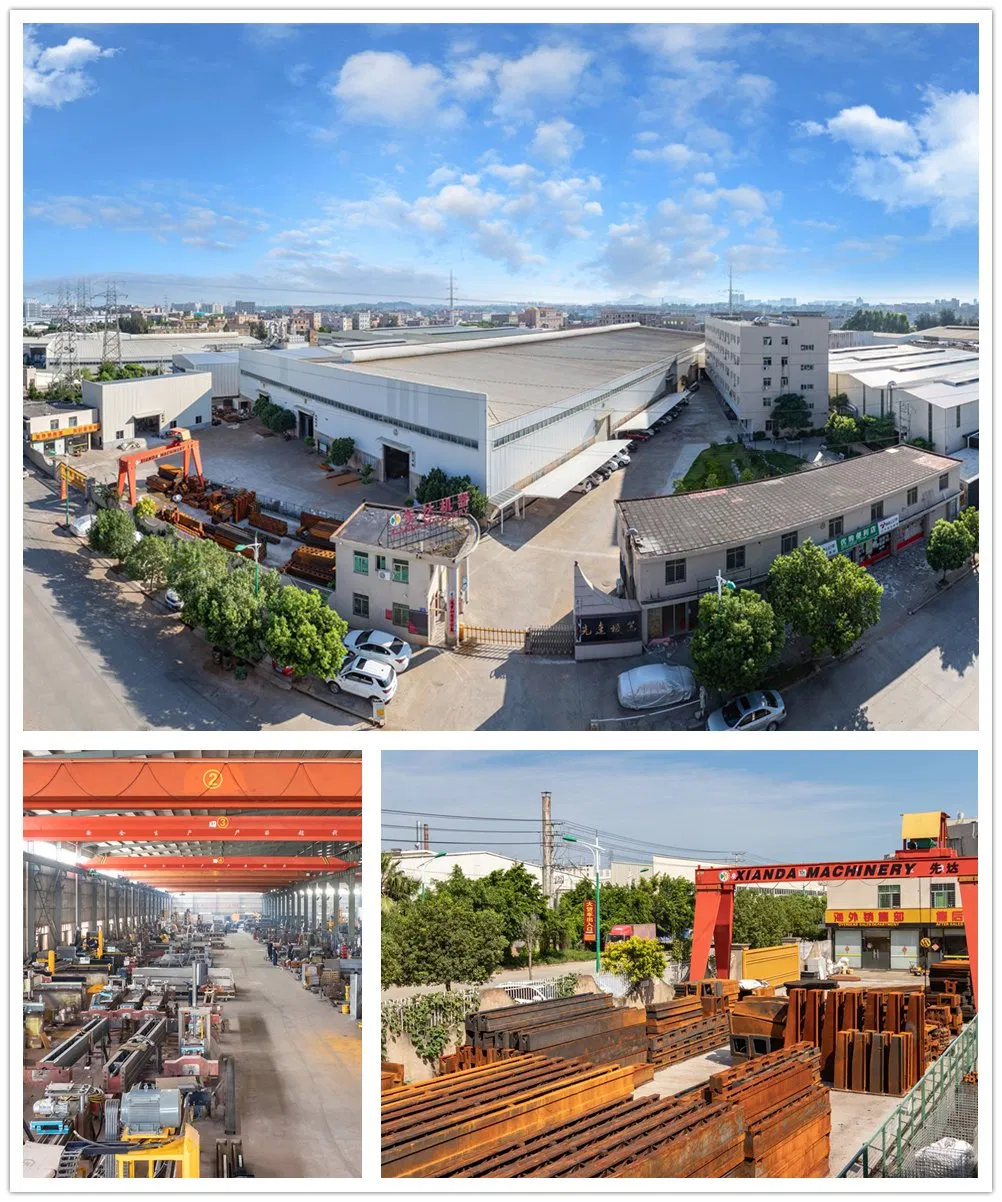

Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and toolsin China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named "Wuli Bridge" and next to biggest stone market in the world- Shuitou.
With more than 34 years' experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.
Since its foundation in 1985, we keep"Top Technology and Superior Quality"as our standardfor all machines and got CE, ISO Quality Gold Award , etc.
"China Recommend Building Manufacture Enterprise", "3A Enterprise Credit Evalution" , etcfor company.And we are always the sponsor for education as our CEO Mr Roy is enthusiasticabout the public welfare establishments.
Xianda always keep"Creat the highest value of your stone"as purpose,your visiting andcontacting is always welcomed.
Certifications
After Sales Service
* We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.
* After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.
* We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.
FAQ
Q: How to place order to your company?
A: 1. Inquiry-Professional quotation.
2. Confirm the price, lead time, logo, payment term etc.
3. Xianda sales send the Proforma Invoice with seal.
4. Customers make the payment as a deposit and send us Bank receipt.
5. Sales confirm the receipt of down payment . After approval, we will arrange the production & inform the estimated time.
Q: How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q: Are you Manufacturer?
A: Yes,that we are the stone machinery factory for over 30 years.
