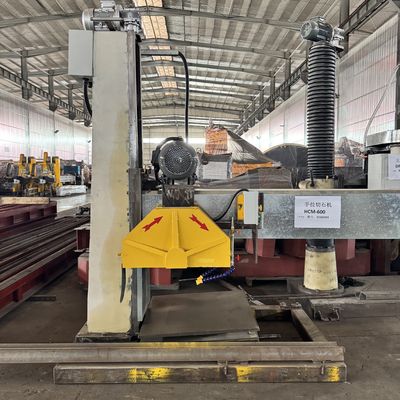

The HCM-600 is a hand-pull stone cutter built for small-batch, high-accuracy cutting of tombstones, paving slabs, and shaped stone.
A Ø600 mm blade, 700 mm lift, and fully enclosed dust-proof body give you clean, chip-free edges with minimal maintenance — ideal for workshops, monument yards, and DIY stone yards.
| Benefit | Feature |
|---|---|
| Chip-free edges | Ø600 mm diamond blade + wet cooling |
| Dust-proof | Fully-enclosed body—no grit in bearings |
| Low maintenance | Open-frame access—belts & guides in 5 min |
| 700 mm lift | Cuts 650 mm thick stone in one pass |
| 2 m³/h water | Closed-loop tank; workshop stays clean |
| Parameter | HCM-600 |
|---|---|
| Blade diameter | Ø600 mm |

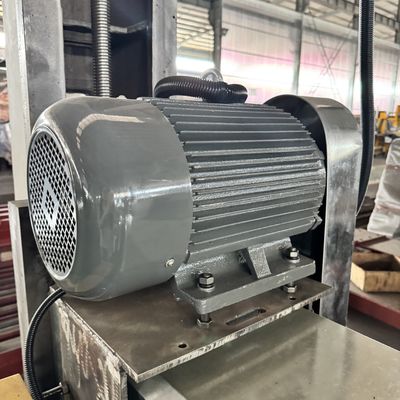

| Main motor | 7.5 kW, 3-phase, 380 V |
| Lifting stroke | 700 mm |
| Table size | 1 200 * 800 mm (standard) |
| Dimensions | 2 200 * 2 700 * 2 850 mm |
| Weight | 1 500 kg |
| Water consumption | 2 m³/h (recycled) |
Materials: granite, marble, basalt, limestone, engineered stone.
| Item | Detail |
|---|---|
| MOQ | 1 (one) machine |
| Shipping | Sea freight to nearest port included |
| Incoterms | FOB, CIF, DDP optional |
| Lead time | 7 days stock / 15 days custom |
| Payment | T/T 30% deposit, 70% before shipment; L/C at sight accepted |
Daily water check, weekly belt tension, monthly bearing grease.
Yes—use the continuous-rim blade supplied.
Video guide and remote support are standard; on-site installation is optional.
24 h from regional warehouse; 5-day express worldwide.
Typically 3-4 months for monument yard cutting 50 slabs/week.
