Name: Max Blade Diameter 2500mm/2800mm Bridge Saw Cutting Machine For Big Marble Block Stone Processing
Brand: Fujian Xianda Machinery co.,ltd
SKU: BTC-2200/2500/2800
Price: 27,508.00 USD
Availability: InStock

Max Blade Diameter 2500mm/2800mm Bridge Saw Cutting Machine For Big Marble Block Stone Processing

MOQ

To Be Negotiable

価格

特徴ギャラリー製品の説明見積依頼

特徴

仕様

タイプ: BTC-2200/2500/2800

電源: 電気

キーワード: 工業用石切断機,花岩ブロック切断機,高精度大理石切断機

使用法: グランイトブロック切削/大理石板の生産/高価な石の加工

Hsコード: 84641090

保証: 1年

出荷の細部: 交渉可能

主力: 45/55/65kw (オプション)

ハイライト:

Stone Cutting Bridge Saw Machine

2800mm Bridge Saw Cutting Machine

Marble Block Bridge Saw Cutting Machine

基本情報

起源の場所: 柔術、福建、中国

ブランド名: Xianda Machinery

証明: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF

モデル番号: BTC-2200/2500/2800

お支払配送条件

パッケージの詳細: 海の輸送に適したプラスチックパッケージ

受渡し時間: 1ヶ月

支払条件: L/C、T/T、D/P、Western Union、PayPal、Money Gram、その他

供給の能力: 1000セット/年

ギャラリー

Max Blade Diameter 2500mm/2800mm Bridge Saw Cutting Machine For Big Marble Block Stone Processing

製品の説明

Max Blade Diameter 2500mm/2800mm Bridge Saw Cutting Machine For Big Marble Block Stone Processing

BTC Series Block Cutting Machine

The BTC Series Block Cutting Machine revolutionizes stone processing with advanced inverter-controlled technology and hydraulic systems. Designed for cutting high-value granite and marble blocks, this industrial-grade equipment combines precision engineering with operational efficiency to maximize productivity in stone quarries and fabrication workshops.

Key Features

Smart Inverter Control System

Left-right feeding motion with variable speed adjustment
Automatic adaptation to different stone hardness levels
Energy-efficient operation reduces power consumption

High-Precision Cutting Mechanism

Forward-backward slicing driven by imported screw nuts
±0.5mm cutting accuracy ensures material conservation
Perfect flatness across sliced slabs (surface roughness ≤3.2μm)

Heavy-Duty Hydraulic System

Stable pressure maintenance (15-20MPa working pressure)
Low maintenance design with leak-proof components

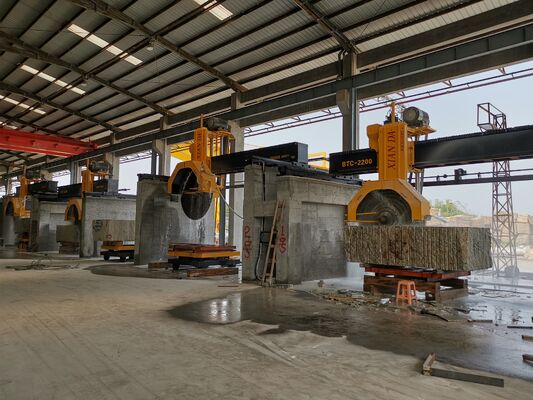

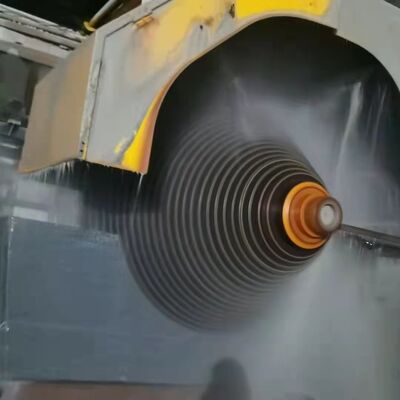

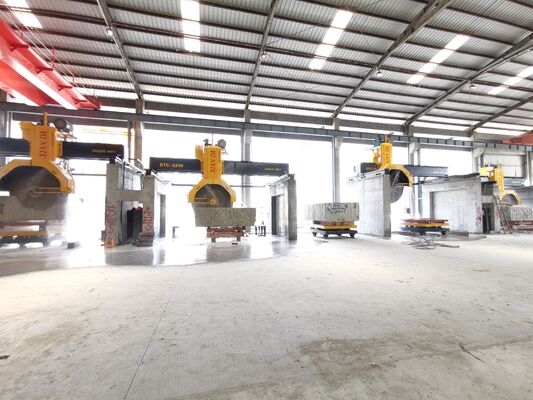

Product Images

Technical Specifications

Parameter	Unit	BTC-2200	BTC-2500	BTC-2800
Max blade diameter	mm	Φ2200	Φ2500	Φ2800
Left and right travel	mm	3800	3500	3200
Moving front & back travel	mm	2200	2200	2200
Lifting stroke	mm	1320	1320	1320
Main motor	kW	45/55	45/55	55/65 (Optional)
Gross power	kW	57/67	57/67	67/77 (Optional)
Outline dimension	mm	800048003700	800048003700	800048003700
Water consumption	m³/h	15	15	15
Gross weight	kg	≈14,000	≈14,500	≈15,000

Support and Services

Installation guidance and setup assistance for the machine
Troubleshooting support for any technical issues that may arise
Training sessions for operators on how to use the machine efficiently
Regular maintenance services to ensure optimal performance and longevity of the equipment

Packing and Shipping

Product Packaging

The machine is carefully packed in a sturdy wooden crate to ensure safe transportation. The equipment is securely fixed within the crate to prevent any damage during shipping.

Shipping

We ship worldwide using trusted shipping services. The machine is shipped in a protective wooden crate to safeguard it from potential damage during transit. Customers receive tracking information once the order is shipped to monitor delivery status.
